28HP200, Timing Pulley

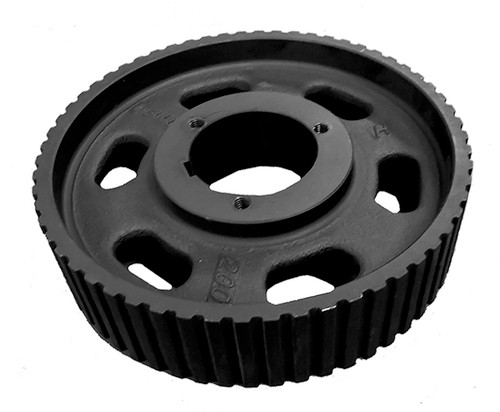

28HP200 - Cast Iron Imperial Pitch Pulleys

28HP200

28HP200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

28HP200, Timing Pulley, Cast Iron

Learn more about 28HP200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28HP200
Teeth 28
Tooth Style H
For Belt Width (in) 2.0000
Type 3F
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P2 Bushing
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.688
Face Width (in) 2.281
Overall Length (in) 3.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P2
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 7.25
Part Number Cross Reference 28HP200, 28HP200, 28HP200
