28L050-6FA6, Timing Pulley

28L050-6FA6 - Aluminum Imperial Pitch Pulleys

28L050-6FA6

Click to Enlarge

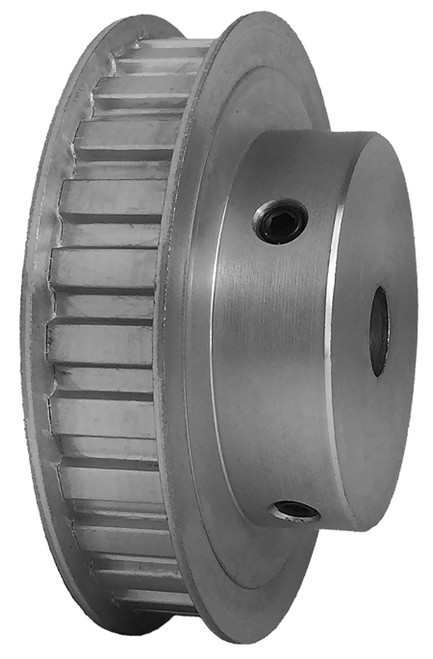

28L050-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28L050-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28L050-6FA6
Teeth 28
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/2 Inch Finished Bore
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.312
Flange Diameter (in) 3.566
Face Width (in) 0.750
Overall Length (in) 1.375
Hub Diameter (in) 2.250
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 85.00
O.D. (mm) 84.10
MOQ 1
Weight (lb) 0.85
Part Number Cross Reference 28L050-6FA6
Set Screw Quantity 2
