28LT187-6FA3, Timing Pulley

28LT187-6FA3

Click to Enlarge

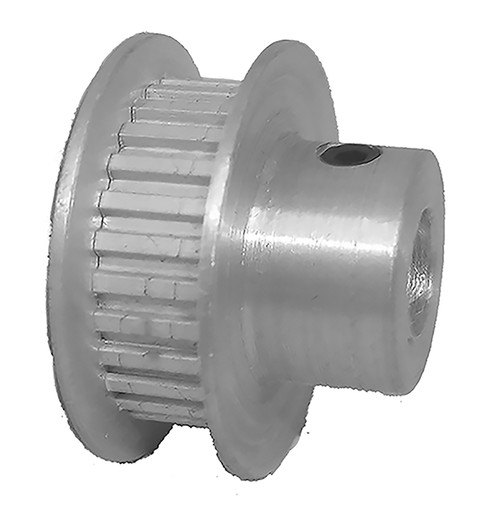

28LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	28LT187-6FA3
Teeth	28
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.727
Outside Diameter (in)	0.707
Flange Diameter (in)	0.895
Face Width (in)	0.324
Overall Length (in)	0.625
Hub Diameter (in)	0.494
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.220
Unit System	Inch
P.D. (mm)	18.00
O.D. (mm)	18.00
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A6-28DF01808, A6A6-28DF01808, 28LT-187 X 1/4-6F, PT028C06L02T, 28M187-1A X 1/4, 28LT187-6FA3, 28LT187-6FA3
Set Screw Quantity	2
