28LT312-6FA3, Timing Pulley

28LT312-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 28LT312-6FA3

Comparable to: A 6A6-28DF03108, A6A6-28DF03108, PT028C08L04T, 28M312-1A X 1/4

Click to Enlarge

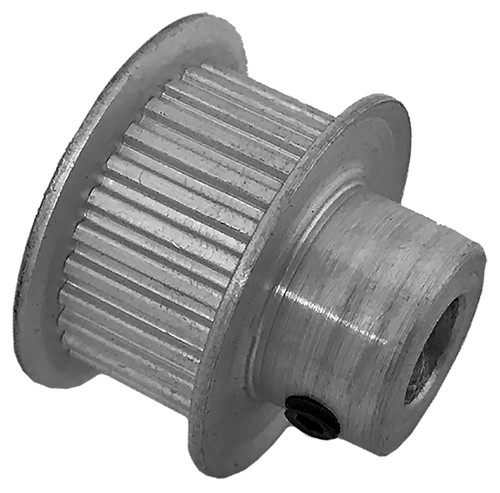

28LT312-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28LT312-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28LT312-6FA3
Teeth 28
Tooth Style LT
For Belt Width (in) 0.3125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.728
Outside Diameter (in) 0.714
Flange Diameter (in) 0.895
Face Width (in) 0.449
Overall Length (in) 0.750
Hub Diameter (in) 0.494
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.350
Unit System Inch
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A6-28DF03108, A6A6-28DF03108, PT028C08L04T, 28M312-1A X 1/4
Set Screw Quantity 2
