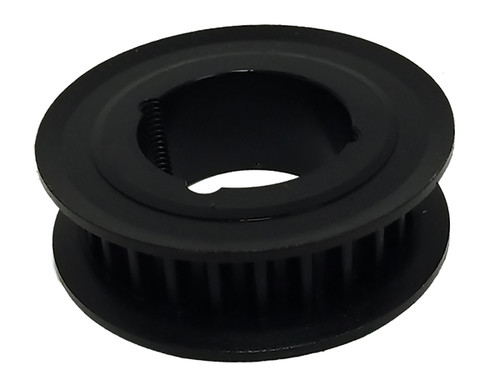

29-8MX12-1108, Timing Pulley

29-8MX12-1108 - Steel Powerhouse® MX Pulleys

29-8MX12-1108

Click to Enlarge

29-8MX12-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 29-8MX12-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 29-8MX12-1108
Teeth 29
Tooth Style 8MX
For Belt Width (mm) 12
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.907
Outside Diameter (in) 2.844
Flange Diameter (in) 3.346
Face Width (in) 0.875
Overall Length (in) 0.875
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.640
Unit System Inch
Bushing 1108
P.D. (mm) 74.00
O.D. (mm) 72.20
MOQ 1
Weight (lb) 1.09
Part Number Cross Reference 29-8MX12-1108
