29-8P12-1210, Timing Pulley

29-8P12-1210 - Steel Powerhouse® Pulleys

29-8P12-1210

Click to Enlarge

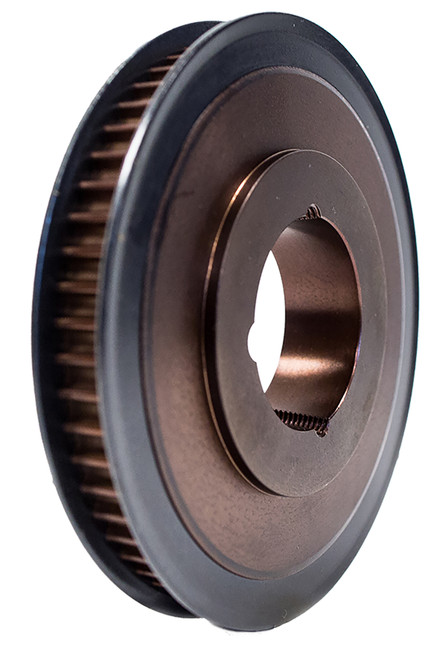

29-8P12-1210, Timing Pulley, Steel, Black Oxide,

Learn more about 29-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 29-8P12-1210
Teeth 29
Tooth Style 8P
For Belt Width (mm) 12
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 2.907
Outside Diameter (in) 2.853
Flange Diameter (in) 3.256
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1210
P.D. (mm) 74.00
O.D. (mm) 72.50
MOQ 1
Weight (lb) 0.97
Part Number Cross Reference P29-8MGT-12, 29-8P12-1210
