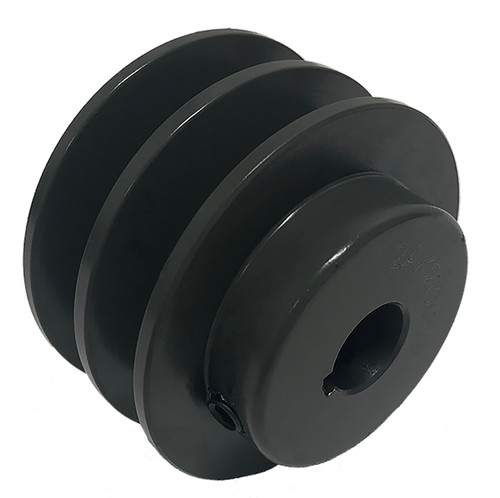

2AK104x1, V-Belt Pulley

2AK104x1

2AK104x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK104x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	2AK104x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	10.250
Face Width (in)	1.375
Overall Length (in)	1.719
Hub Diameter (in)	2.500
Min. Bore (in)	0.75
Unit System	Inch
MOQ	1
Pitch Dia. "A"	10.000
Pitch Dia. "3L"	9.660
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	9.40
Part Number Cross Reference	2AK104 1, 2AK104x1, 2AK104-1 PULLEY, 20179630, 2AK104 X 1 SHEAVE, 2AK1041, 2MA103X1, 2AK104x1, 2MA103X1, 2AK104x1
Grooves	2
Set Screw Quantity	1
