2AK144H, V-Belt Pulley

2AK144H

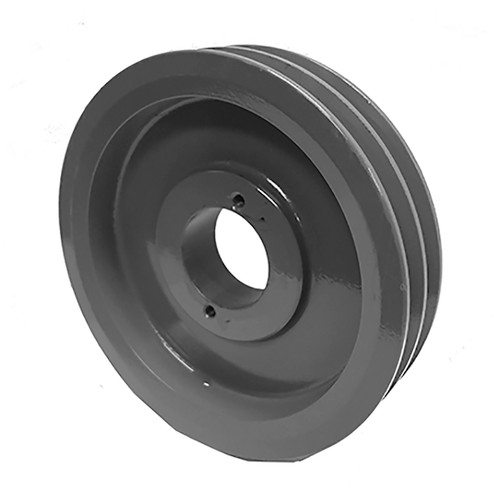

2AK144H, V-Belt Pulley, Cast Iron

Learn more about 2AK144H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2AK144H
Type	3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	14.250
Face Width (in)	1.375
Overall Length (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	14.000
Pitch Dia. "3L"	13.660
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	11.90
Part Number Cross Reference	2AK144QT, 2AK144H, 2AK144-QT, 20179521, 2AK144H SHEAVE, 2AK144, 2MAL142, 2AK144H, 2MAL142, 2AK144H
Grooves	2
