2AK184H, V-Belt Pulley

2AK184H, 2AK184-QT, 20179523, 2MAL184

Product Details for 2AK184H

Comparable to: 2AK184H, 2AK184-QT, 20179523, 2AK184, 2MAL183, 2AK184QT

Click to Enlarge

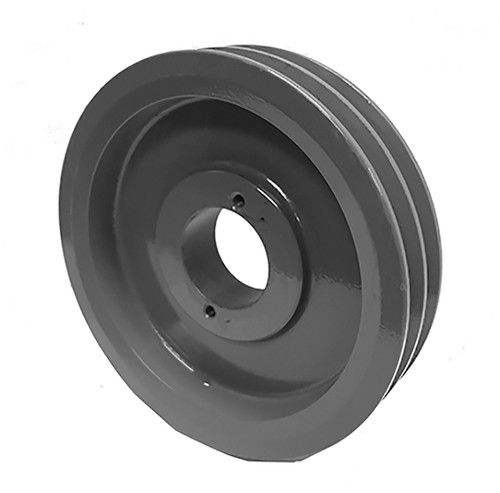

2AK184H, V-Belt Pulley, Cast Iron

Learn more about 2AK184H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2AK184H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 18.250
Face Width (in) 1.375
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 18.000
Pitch Dia. "3L" 17.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 16.80
Part Number Cross Reference 2AK184H, 2AK184-QT, 20179523, 2AK184, 2MAL183, 2AK184QT
Grooves 2
