2AK30H, V-Belt Pulley

2AK30H, 2AK30-QT, 20179524, 2MAL30

Product Details for 2AK30H

Comparable to: 2AK30H, 2AK30-QT, 20179524, 2AK30, 2MAL30, 2AK30QT

Click to Enlarge

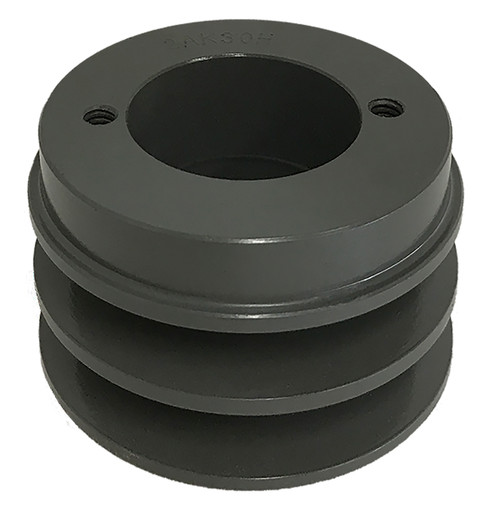

2AK30H, V-Belt Pulley, Cast Iron

Learn more about 2AK30H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2AK30H
Type 1
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 3.050
Face Width (in) 1.375
Overall Length (in) 2.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 2.800
Pitch Dia. "3L" 2.460
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 1.40
Part Number Cross Reference 2AK30H, 2AK30-QT, 20179524, 2AK30, 2MAL30, 2AK30QT
Grooves 2
