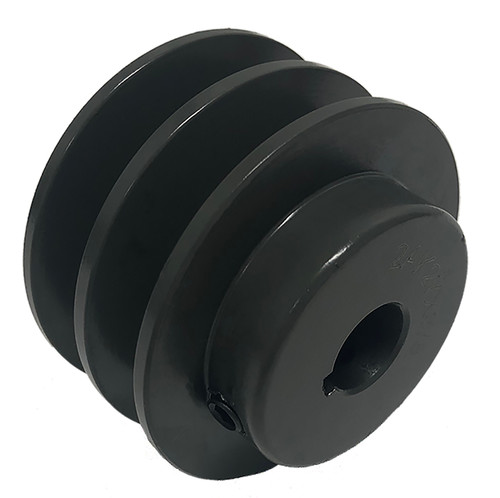

2AK30x1, V-Belt Pulley

2AK30x1

2AK30x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK30x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	2AK30x1
Type	1
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	3.050
Face Width (in)	1.375
Overall Length (in)	1.844
Hub Diameter (in)	2.125
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Pitch Dia. "A"	2.800
Pitch Dia. "3L"	2.460
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	1.90
Part Number Cross Reference	2AK30 1, 2AK30x1, 2AK30-1, 20179683, 2AK30 X 1 SHEAVE, 2AK301, 2MA30X1, 2AK30x1, 2MA30X1, 2AK30x1
Grooves	2
Set Screw Quantity	1
