2AK34H, V-Belt Pulley

2AK34H

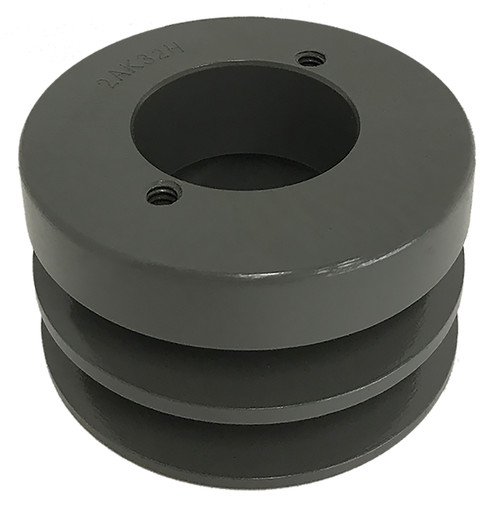

2AK34H, V-Belt Pulley, Cast Iron

Learn more about 2AK34H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2AK34H
Type	1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	3.450
Face Width (in)	1.375
Overall Length (in)	2.000
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	3.200
Pitch Dia. "3L"	2.860
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	1.80
Part Number Cross Reference	2AK34QT, 2AK34H, 2AK34-QT, 20179526, 2AK34H SHEAVE, 2AK34, 2MAL34, 2AK34H, 2MAL34, 2AK34H
Grooves	2
