2AK44H, V-Belt Pulley

2AK44H, 2AK44-QT, 20179529, 2MAL44

Product Details for 2AK44H

Comparable to: 2AK44H, 2AK44-QT, 20179529, 2AK44, 2MAL43, 2AK44QT

Click to Enlarge

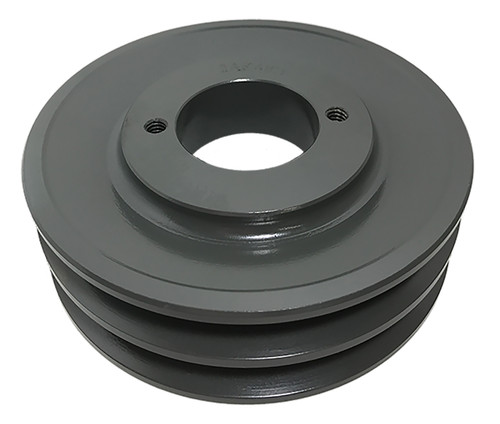

2AK44H, V-Belt Pulley, Cast Iron

Learn more about 2AK44H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2AK44H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 4.250
Face Width (in) 1.375
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 4.000
Pitch Dia. "3L" 3.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 2.40
Part Number Cross Reference 2AK44H, 2AK44-QT, 20179529, 2AK44, 2MAL43, 2AK44QT
Grooves 2
