2AK49H, V-Belt Pulley

2AK49H, 2AK49-QT, 20179531, 2MAL49

Product Details for 2AK49H

Comparable to: 2AK49H, 2AK49-QT, 20179531, 2AK49, 2MAL48, 2AK49QT

Click to Enlarge

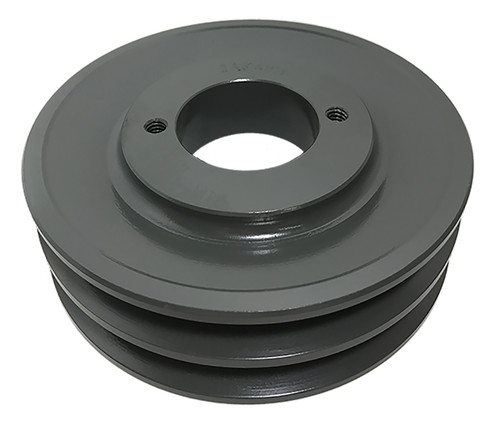

2AK49H, V-Belt Pulley, Cast Iron

Learn more about 2AK49H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2AK49H
Type 2
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 4.750
Face Width (in) 1.375
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 4.500
Pitch Dia. "3L" 4.160
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.10
Part Number Cross Reference 2AK49H, 2AK49-QT, 20179531, 2AK49, 2MAL48, 2AK49QT
Grooves 2
