2AK64x1, V-Belt Pulley

2AK64x1

2AK64x1

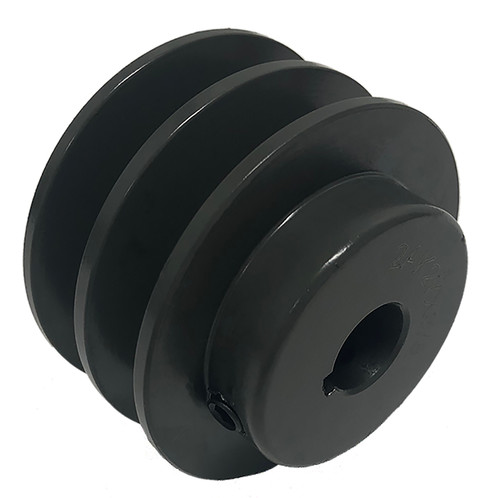

2AK64x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK64x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK64x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 6.250
Face Width (in) 1.375
Overall Length (in) 1.719
Hub Diameter (in) 2.500
Min. Bore (in) 0.75
Unit System Inch
MOQ 1
Pitch Dia. "A" 6.000
Pitch Dia. "3L" 5.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 4.90
Part Number Cross Reference 2AK64 1, 2AK64x1, 2AK64-1 PULLEY, 20179747, 2AK64 X 1 SHEAVE, 2AK641, 2MA63X1, 2AK64x1, 2MA63X1, 2AK64x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2AK64 1, 2AK64x1, 2AK64-1 PULLEY, 20179747, 2AK64 X 1 SHEAVE, 2AK641, 2MA63X1, 2AK64x1, 2MA63X1, 2AK64x1
