2AK74x1, V-Belt Pulley

Product Details for 2AK74x1

Comparable to: 2AK74 1., 2AK74-1 PULLEY, 20179753, 121920, 2AK741, 2AK74-1, 2MA73x1

Click to Enlarge

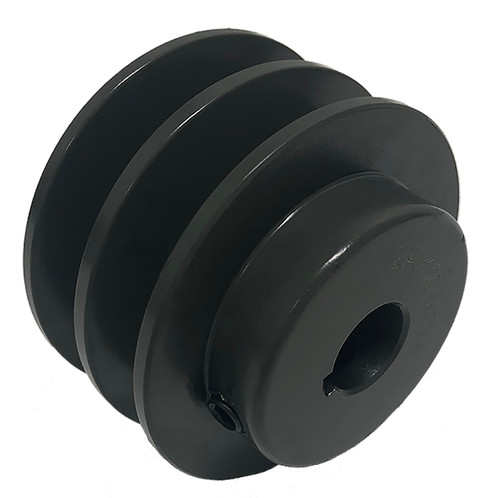

2AK74x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2AK74x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2AK74x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 7.250
Face Width (in) 1.375
Overall Length (in) 1.719
Hub Diameter (in) 2.500
Min. Bore (in) 0.750
MOQ 1
Pitch Dia. "A" 7.000
Pitch Dia. "3L" 6.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 5.90
Part Number Cross Reference 2AK74 1., 2AK74-1 PULLEY, 20179753, 121920, 2AK741, 2AK74-1, 2MA73x1
Grooves 2
Set Screw Quantity 1
