2BK100H, V-Belt Pulley

2BK100H, 2BK100-QT, 20179541, 2MBL97

Product Details for 2BK100H

Comparable to: 2BK100H, 2BK100-QT, 20179541, 2BK100, 00754713, 2MBL98, 2BK100QT

Click to Enlarge

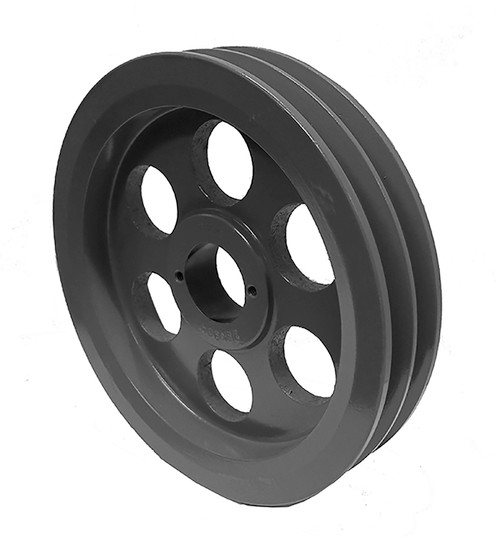

2BK100H, V-Belt Pulley, Cast Iron

Learn more about 2BK100H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK100H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 9.750
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 9.000
Pitch Dia. "B" 9.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 8.40
Part Number Cross Reference 2BK100H, 2BK100-QT, 20179541, 2BK100, 00754713, 2MBL98, 2BK100QT
Grooves 2
