2BK100x1, V-Belt Pulley

2BK100x1

2BK100x1

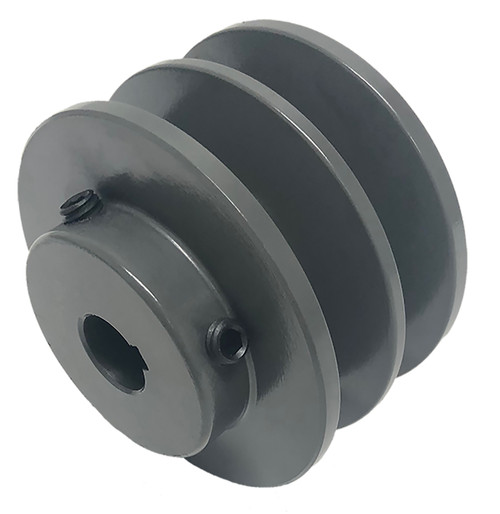

2BK100x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK100x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK100x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 9.750
Face Width (in) 1.750
Overall Length (in) 2.094
Hub Diameter (in) 2.500
Min. Bore (in) 0.75
Unit System Inch
MOQ 1
Pitch Dia. "A" 9.000
Pitch Dia. "B" 9.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 11.63
Part Number Cross Reference 2BK100 1, 2BK100x1, 2BK100-1 PULLEY, 20179772, 2BK100 X 1 SHEAVE, 2BK1001, 2MB98X1, 2BK100x1, 2MB98X1, 2BK100x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2BK100 1, 2BK100x1, 2BK100-1 PULLEY, 20179772, 2BK100 X 1 SHEAVE, 2BK1001, 2MB98X1, 2BK100x1, 2MB98X1, 2BK100x1

Documentation

For custom parts click here
REACH Certification
RoHS Certification
