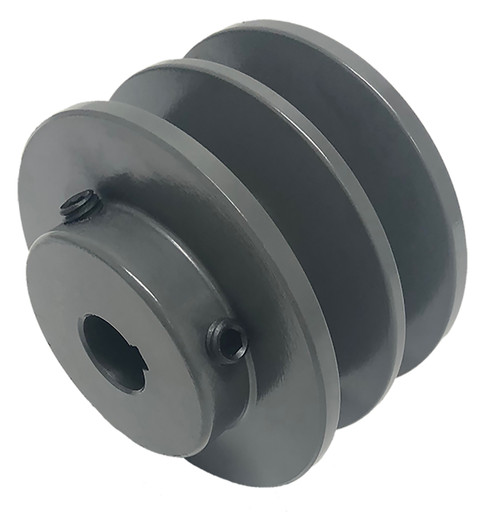

2BK120x1, V-Belt Pulley

2BK120x1

2BK120x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK120x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	2BK120x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	11.750
Face Width (in)	1.750
Overall Length (in)	2.094
Hub Diameter (in)	2.500
Min. Bore (in)	1
Unit System	Inch
MOQ	1
Pitch Dia. "A"	11.000
Pitch Dia. "B"	11.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	15.13
Part Number Cross Reference	2BK120 1, 2BK120x1, 2BK120X1 SHEAVE, 21015453, 2BK120 X 1 SHEAVE, 2BK1201, 2MB118X1, 2BK120x1, 2MB118X1, 2BK120x1
Grooves	2
Set Screw Quantity	1
