2BK130H, V-Belt Pulley

2BK130H, 2BK130-QT, 20179544, 2MBL127

Product Details for 2BK130H

Comparable to: 2BK130H, 2BK130-QT, 20179544, 2BK130, 00754747, 2MBL128, 2BK130QT

Click to Enlarge

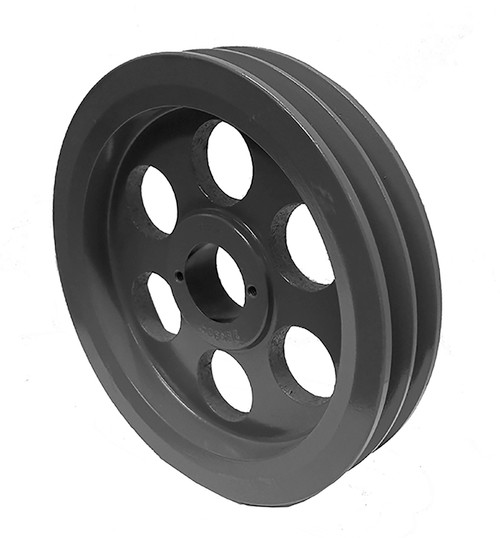

2BK130H, V-Belt Pulley, Cast Iron

Learn more about 2BK130H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK130H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 12.750
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 12.000
Pitch Dia. "B" 12.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 13.10
Part Number Cross Reference 2BK130H, 2BK130-QT, 20179544, 2BK130, 00754747, 2MBL128, 2BK130QT
Grooves 2
