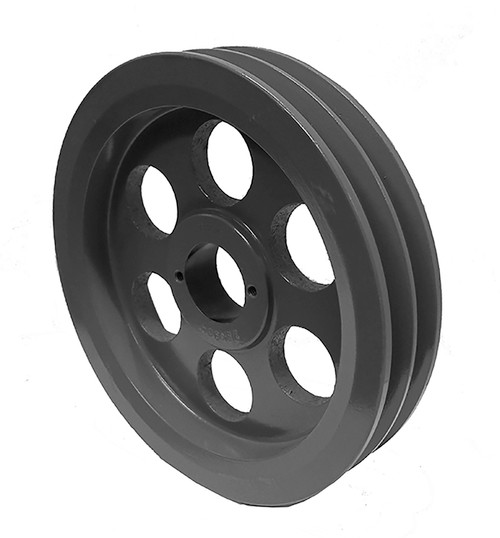

2BK160H, V-Belt Pulley

2BK160H

2BK160H, V-Belt Pulley, Cast Iron

Learn more about 2BK160H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	2BK160H
Type	3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	15.750
Face Width (in)	1.750
Overall Length (in)	1.750
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	15.000
Pitch Dia. "B"	15.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	17.50
Part Number Cross Reference	2BK160QT, 2BK160H, 2BK160-QT, 20179546, 2BK160H SHEAVE, 2BK160, 2MBL157, 2BK160H, 2MBL157, 2BK160H
Grooves	2
