2BK28x1, V-Belt Pulley

2BK28x1

2BK28x1

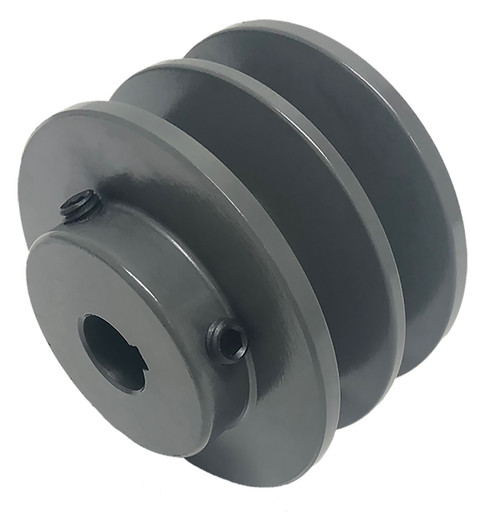

2BK28x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK28x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK28x1
Type 1
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 2.950
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 1.875
Min. Bore (in) 0.500
Unit System Inch
MOQ 1
Pitch Dia. "A" 2.200
Pitch Dia. "B" 2.600
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.00
Part Number Cross Reference 2BK28 1, 2BK28x1, 2BK28x1
Grooves 2
Set Screw Quantity 1

Related Products

Comparable to: 2BK28 1, 2BK28x1, 2BK28x1
