2BK34H, V-Belt Pulley

2BK34H, 2BK34-QT, 20179549, 2MBL35

2BK34H

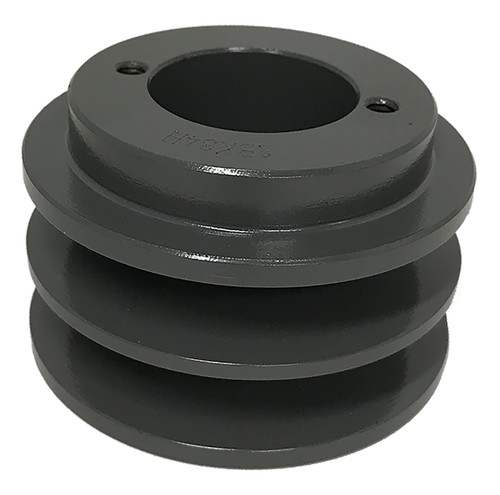

2BK34H, V-Belt Pulley, Cast Iron

Learn more about 2BK34H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK34H
Type 1
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 3.550
Face Width (in) 1.750
Overall Length (in) 2.813
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 2.800
Pitch Dia. "B" 3.200
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.40
Part Number Cross Reference 2BK34QT, 2BK34H, 2BK34-QT, 20179549, 2BK34H SHEAVE, 2BK34, 2MBL35, 2BK34H, 2MBL35, 2BK34H
Grooves 2

Related Products

Comparable to: 2BK34QT, 2BK34H, 2BK34-QT, 20179549, 2BK34H SHEAVE, 2BK34, 2MBL35, 2BK34H, 2MBL35, 2BK34H
