2BK47x1, V-Belt Pulley

Product Details for 2BK47x1

Comparable to: 2BK47 1., 2BK47-1 PULLEY, 20179847, 121777, 2BK471, 2BK47-1, 2MB45x1

Click to Enlarge

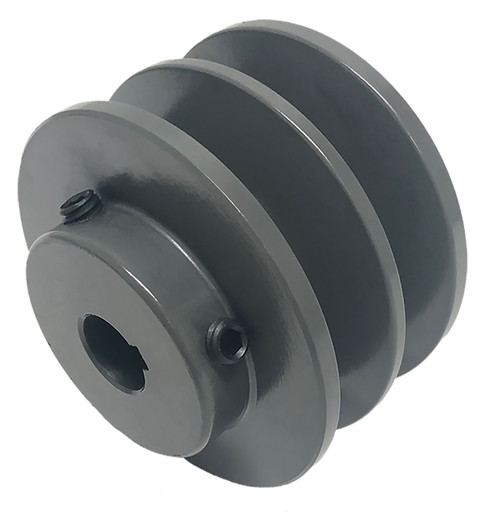

2BK47x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK47x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK47x1
Type 2
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 4.450
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 0.875
MOQ 1
Pitch Dia. "A" 3.700
Pitch Dia. "B" 4.100
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 4.30
Part Number Cross Reference 2BK47 1., 2BK47-1 PULLEY, 20179847, 121777, 2BK471, 2BK47-1, 2MB45x1
Grooves 2
Set Screw Quantity 1
