2BK62H, V-Belt Pulley

2BK62H, 2BK62-QT, 20179559, 2MBL59

2BK62H

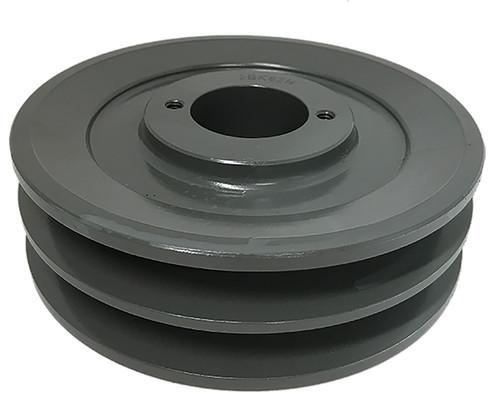

2BK62H, V-Belt Pulley, Cast Iron

Learn more about 2BK62H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 2BK62H
Type 2
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 5.950
Face Width (in) 1.750
Overall Length (in) 1.750
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 5.200
Pitch Dia. "B" 5.600
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 4.50
Part Number Cross Reference 2BK62QT, 2BK62H, 2BK62-QT, 20179559, 2BK62H SHEAVE, 2BK62, 2MBL59, 2BK62H, 2MBL59, 2BK62H
Grooves 2

Related Products

Comparable to: 2BK62QT, 2BK62H, 2BK62-QT, 20179559, 2BK62H SHEAVE, 2BK62, 2MBL59, 2BK62H, 2MBL59, 2BK62H

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
