2BK65x1, V-Belt Pulley

Product Details for 2BK65x1

Comparable to: 2BK65 1., 2BK65-1 PULLEY, 20179873, 121966, 2BK651, 2BK65-1, 2MB63x1

Click to Enlarge

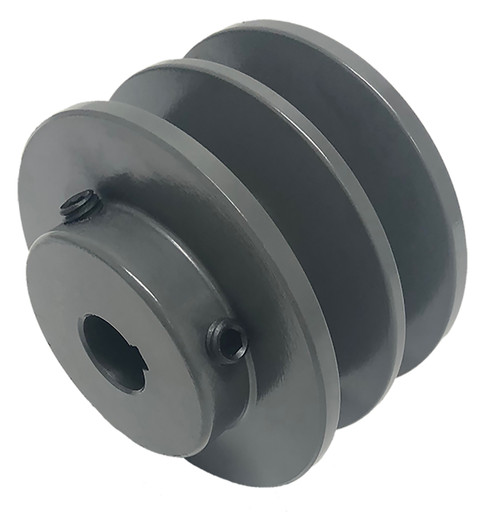

2BK65x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK65x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK65x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 6.250
Face Width (in) 1.750
Overall Length (in) 2.219
Hub Diameter (in) 2.125
Min. Bore (in) 1.000
MOQ 1
Pitch Dia. "A" 5.500
Pitch Dia. "B" 5.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 6.50
Part Number Cross Reference 2BK65 1., 2BK65-1 PULLEY, 20179873, 121966, 2BK651, 2BK65-1, 2MB63x1
Grooves 2
Set Screw Quantity 1
