2BK90x1, V-Belt Pulley

Product Details for 2BK90x1

Comparable to: 2BK90 1., 2BK90-1 PULLEY, 20179891, 121981, 2BK901, 2BK90-1, 2MB88x1

Click to Enlarge

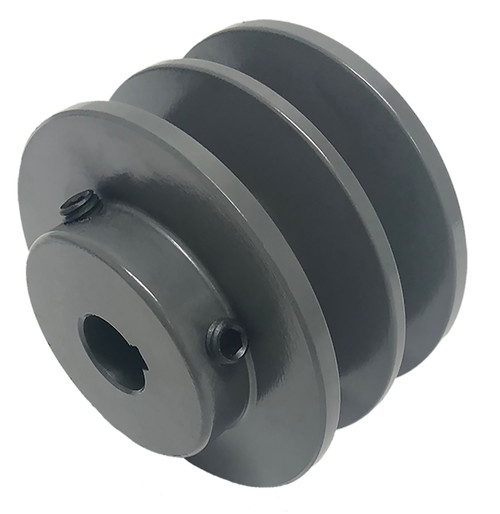

2BK90x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2BK90x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2BK90x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 8.750
Face Width (in) 1.750
Overall Length (in) 2.094
Hub Diameter (in) 2.500
Min. Bore (in) 0.750
MOQ 1
Pitch Dia. "A" 8.000
Pitch Dia. "B" 8.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 9.90
Part Number Cross Reference 2BK90 1., 2BK90-1 PULLEY, 20179891, 121981, 2BK901, 2BK90-1, 2MB88x1
Grooves 2
Set Screw Quantity 1
