2C100SF, V-Belt Pulley

2C100SF, QD2C10

Product Details for 2C100SF

Comparable to: QD2C10.0, 2C100.SF, 10.0-2C-SF, 2C10.0, 2/C1000SF

Click to Enlarge

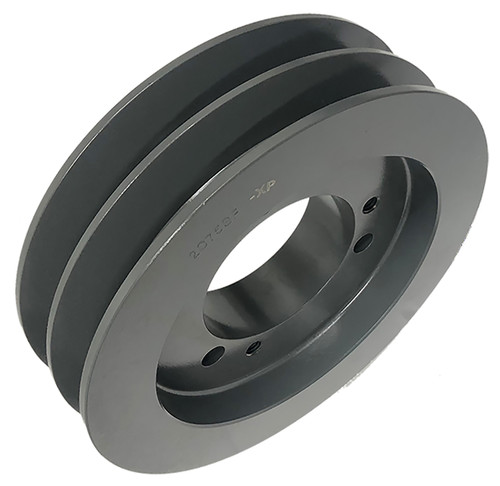

2C100SF, V-Belt Pulley, Cast Iron

Specifications

Product Number 2C100SF
Type D3
Material Cast Iron
Bore Type QD
Outside Diameter (in) 10.400
Face Width (in) 2.250
Min. Bore (in) 0.500
Bushing SF
Max. Bore (in) 2.9375
L (in) 2.0625
MOQ 1
Weight (lb) 19.40
Part Number Cross Reference QD2C10.0, 2C100.SF, 10.0-2C-SF, 2C10.0, 2/C1000SF
Grooves 2
Set Screw Quantity 0
