2C140SF, V-Belt Pulley

2C140SF, QD2C14

Product Details for 2C140SF

Comparable to: QD2C14.0, 2C140.SF, 14.0-2C-SF, 2C14.0, 2/C1400SF

Click to Enlarge

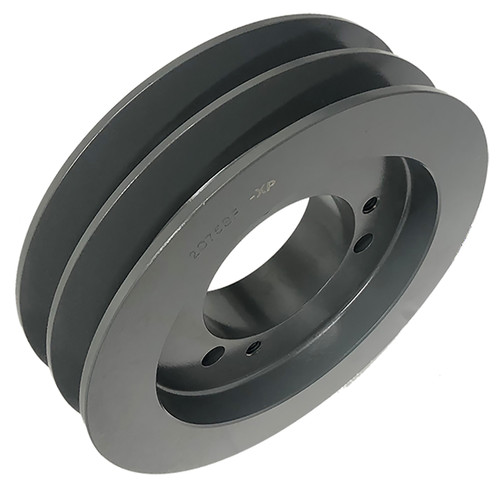

2C140SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2C140SF in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2C140SF
Type D3
Material Cast Iron
Bore Type QD
Outside Diameter (in) 14.400
Face Width (in) 2.250
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Weight (lb) 30.10
Part Number Cross Reference QD2C14.0, 2C140.SF, 14.0-2C-SF, 2C14.0, 2/C1400SF
Grooves 2
Set Screw Quantity 0
