2C180SF, V-Belt Pulley

2C180SF, QD2C18

2C180SF

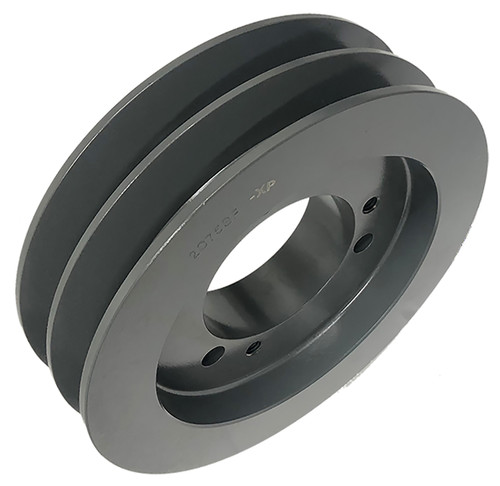

2C180SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 2C180SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 2C180SF
Type D-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for SF Bushing
Outside Diameter (in) 18.400
Face Width (in) 2.250
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Weight (lb) 40.90
Part Number Cross Reference QD2C18.0, 2C180.SF, 18.0-2C-SF PULLEY, 20179099, 2C18.0, 2/C1800SF, 2C180SF
Grooves 2

Related Products

Comparable to: QD2C18.0, 2C180.SF, 18.0-2C-SF PULLEY, 20179099, 2C18.0, 2/C1800SF, 2C180SF
