2C300F, V-Belt Pulley

2C300F, QD2C30

Product Details for 2C300F

Comparable to: QD2C30.0, 2C300.F, 30.0-2C-F, 2/C3000F

Click to Enlarge

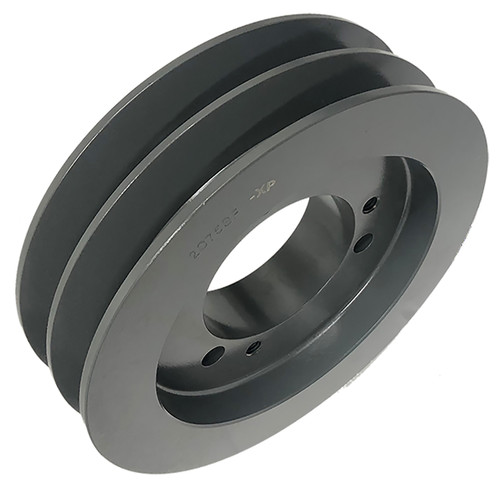

2C300F, V-Belt Pulley, Cast Iron

Specifications

Product Number 2C300F
Type C3
Material Cast Iron
Bore Type QD
Outside Diameter (in) 30.400
Face Width (in) 2.250
Min. Bore (in) 1.000
Bushing F
Max. Bore (in) 4.000
L (in) 3.375
MOQ 1
Weight (lb) 82.40
Part Number Cross Reference QD2C30.0, 2C300.F, 30.0-2C-F, 2/C3000F
Grooves 2
Set Screw Quantity 0
