30-14MX68-6FS10 Powerhouse™ Mx Pulleys

30-14MX68-6FS10, PB14MX-30S-68, 77166030, PB14MCS-30-68, 30G-14M-68-MPB, 208397

Product Details for 30-14MX68-6FS10

Comparable to: 30-14MX68-6FS10, PB14MX-30S-68, 77166030, PB14MCS-30-68, 30G-14M-68-MPB, 208397

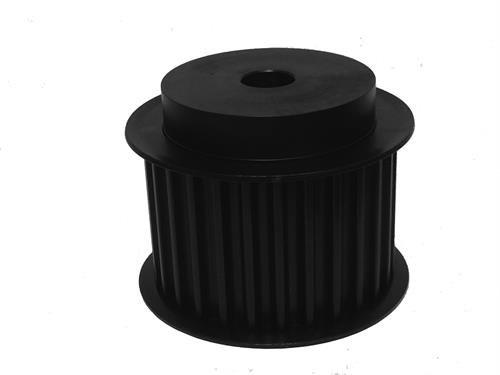

30-14MX68-6FS10, Timing Pulley, Powerhouse MX, 1 Inch Bore, Cast Iron

Specifications

Product Number 30-14MX68-6FS10
Teeth 30
Tooth Style GT2 14mm
For Belt Width (mm) 68.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.763
Face Width (in) 3.328
Overall Length (in) 4.125
Hub Diameter (in) 4.350
Min. Bore (in) 1
Pulley Belt Width (in) 3.010
Unit System Inch
Max. Bore (in) 4.1
Weight (lb) 18.60
Part Number Cross Reference 30-14MX68-6FS10, PB14MX-30S-68, 77166030, PB14MCS-30-68, 30G-14M-68-MPB, 208397

Documentation

Download Catalog 2015_BBMAN_CATALOG_170.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 30-14MX68-6FS10_REACH_cert
RoHS Certification 30-14MX68-6FS10_RoHS_cert
