30-14P115-2517, Timing Pulley

30-14P115-2517

Click to Enlarge

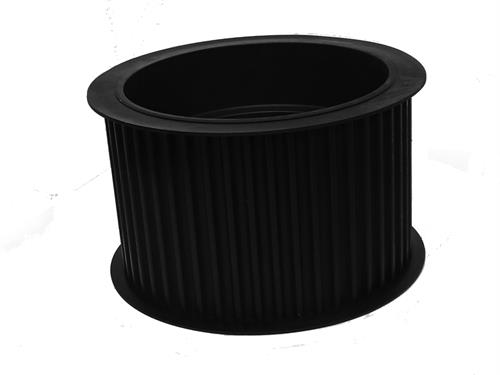

30-14P115-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 30-14P115-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	30-14P115-2517
Teeth	30
Tooth Style	14P
For Belt Width (mm)	115.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	5.263
Outside Diameter (in)	5.153
Flange Diameter (in)	5.763
Face Width (in)	5.250
Overall Length (in)	5.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	4.930
Unit System	Inch
Bushing	2517
P.D. (mm)	134.00
O.D. (mm)	130.90
MOQ	1
Weight (lb)	12.39
Part Number Cross Reference	P30-14MGT-115, B3014M115TL, P30-14M-115-2517, 20182769, P30-14M115-2517, P3014M115TL, 30-14P115-2517, 30-14P115-2517
