30-14P40-2012 Powerhouse™ Pulleys

30-14P40-2012, P30-14MGT-40, B3014M40TL, P30-14M-40-2012, 20182770

Product Details for 30-14P40-2012

Comparable to: 30-14P40-2012, P30-14MGT-40, B3014M40TL, P30-14M-40-2012, 20182770

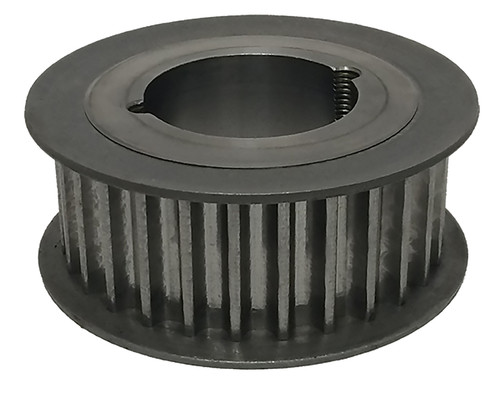

30-14P40-2012, Timing Pulley, Powerhouse, 2012 Bushing, Cast Iron

Specifications

Product Number 30-14P40-2012
Teeth 30
Tooth Style GT 14mm
For Belt Width (mm) 40.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.763
Face Width (in) 2.130
Overall Length (in) 2.130
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2012
Weight (lb) 6.61
List Price (1-9 Qty.) (USD) 82.29
Discount Price (10-24 Qty.) (USD) 74.06
Discount Price (25-49 Qty.) (USD) 65.84
Part Number Cross Reference 30-14P40-2012, P30-14MGT-40, B3014M40TL, P30-14M-40-2012, 20182770

Documentation

Download Catalog 2015_BBMAN_CATALOG_145.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 30-14P40-2012_REACH_cert
RoHS Certification 30-14P40-2012_RoHS_cert
