30-3M06-6FA5, Timing Pulley

30-3M06-6FA5 - Aluminum Powerhouse®HTD® Pulleys

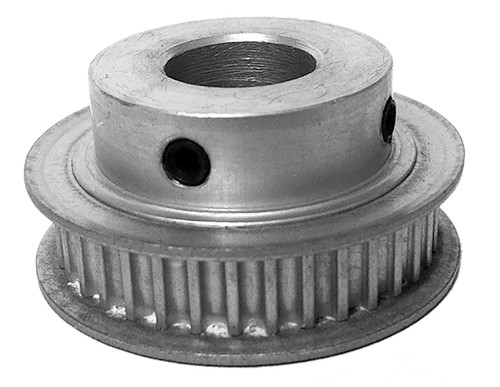

30-3M06-6FA5

Click to Enlarge

30-3M06-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-3M06-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-3M06-6FA5
Teeth 30
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.098
Flange Diameter (in) 1.250
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.776
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 29.00
O.D. (mm) 27.90
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference 30-3M06-6FA5, 30-3M06-6FA5
Set Screw Quantity 2
