30-3M06-IA3, Timing Pulley

30-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

Product Details for 30-3M06-IA3

Comparable to: A 6D23-030DF0608, A6D23-030DF0608

Click to Enlarge

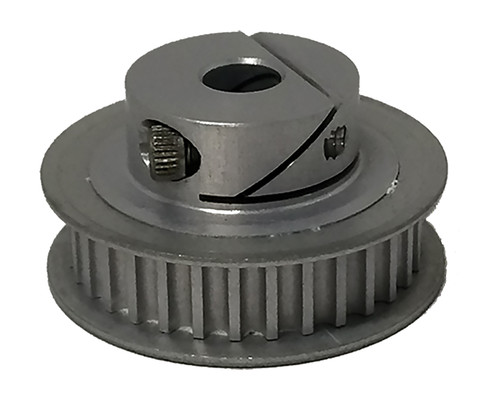

30-3M06-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-3M06-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-3M06-IA3
Teeth 30
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.098
Flange Diameter (in) 1.250
Face Width (in) 0.386
Overall Length (in) 0.688
Hub Diameter (in) 0.750
Min. Bore (in) 0.250
Unit System Inch
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6D23-030DF0608, A6D23-030DF0608
