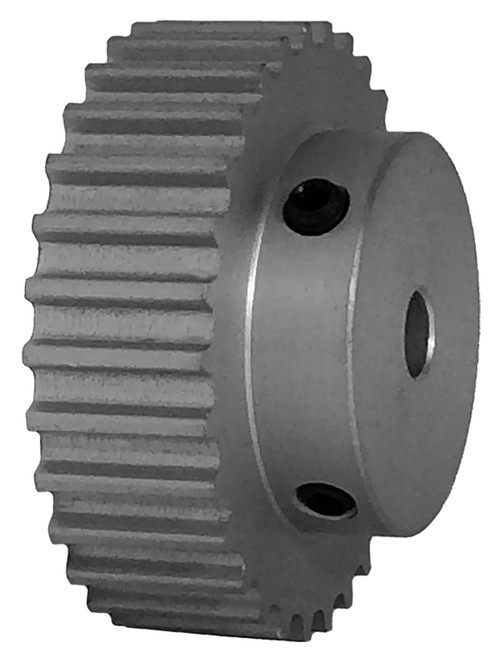

30-5M09-6A3, Timing Pulley

30-5M09-6A3 - Aluminum Powerhouse®HTD® Pulleys

30-5M09-6A3

Click to Enlarge

30-5M09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-5M09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5M09-6A3
Teeth 30
Tooth Style HTD 5mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Face Width (in) 0.546
Overall Length (in) 0.859
Hub Diameter (in) 1.187
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 46.60
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference 30-5M09-6A3
Set Screw Quantity 2
