30-5M09-6FA3, Timing Pulley

30-5M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

30-5M09-6FA3

Click to Enlarge

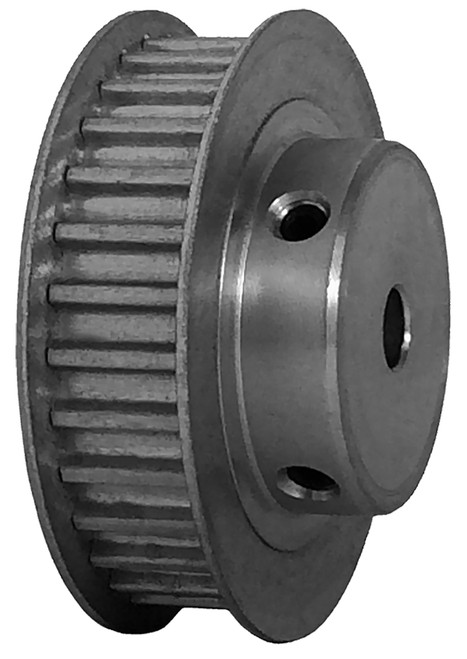

30-5M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-5M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5M09-6FA3
Teeth 30
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Flange Diameter (in) 2.000
Face Width (in) 0.547
Overall Length (in) 0.859
Hub Diameter (in) 1.187
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.420
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 46.60
MOQ 1
Weight (lb) 0.18
Part Number Cross Reference A 6A25-030DF0908, A6A25-030DF0908, P30-5M-09AL, 30M5-L09M-6F, PT030G08L09T, 30-5M-09 X 1/4, 30-5M09-6FA3, 30-5M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A25-030DF0908, A6A25-030DF0908, P30-5M-09AL, 30M5-L09M-6F, PT030G08L09T, 30-5M-09 X 1/4, 30-5M09-6FA3, 30-5M09-6FA3

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
