30-5P25-6FS6, Timing Pulley

30-5P25-6FS6 - Steel Powerhouse® Pulleys

30-5P25-6FS6

Click to Enlarge

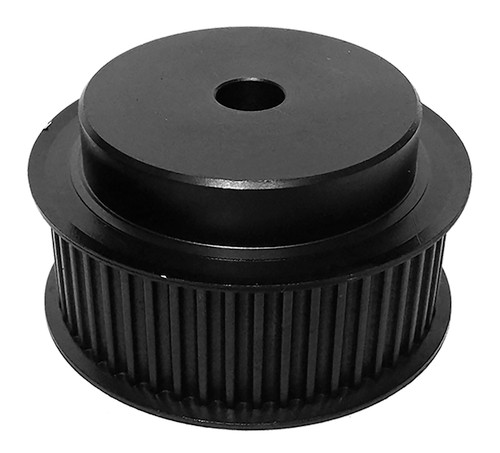

30-5P25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 30-5P25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-5P25-6FS6
Teeth 30
Tooth Style 5P
For Belt Width (mm) 25
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.835
Flange Diameter (in) 2.125
Face Width (in) 1.280
Overall Length (in) 1.730
Hub Diameter (in) 1.440
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 46.60
MOQ 1
Weight (lb) 1.06
Part Number Cross Reference P30-5MGT-25-MPB, 30-5P25-6FS6
