30-8MX21-1108SS, Timing Pulley

30-8MX21-1108SS

Click to Enlarge

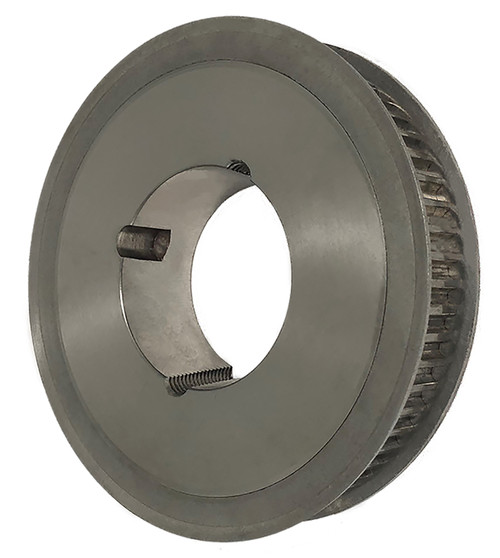

30-8MX21-1108SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 30-8MX21-1108ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	30-8MX21-1108SS
Teeth	30
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	3.008
Outside Diameter (in)	2.945
Flange Diameter (in)	3.346
Face Width (in)	1.203
Overall Length (in)	1.203
Min. Bore (in)	0.5
Unit System	Inch
Bushing	1108
P.D. (mm)	76.00
O.D. (mm)	74.80
MOQ	1
Weight (lb)	1.47
Part Number Cross Reference	SS 8MX-30S-21 1108, SS 30G-8M-21-1108 STAINLESS STEEL QTE, 21060740, 30-8MX21-1108SS, 30-8MX21-1108SS
