30-8MX21-6FS6, Timing Pulley

30-8MX21-6FS6 - Steel Powerhouse® MX Pulleys

30-8MX21-6FS6

Click to Enlarge

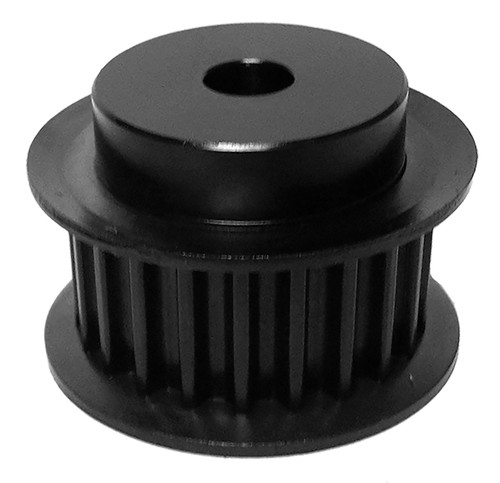

30-8MX21-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 30-8MX21-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-8MX21-6FS6
Teeth 30
Tooth Style 8MX
For Belt Width (mm) 21
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.945
Flange Diameter (in) 3.346
Face Width (in) 1.203
Overall Length (in) 1.766
Hub Diameter (in) 2.547
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.960
Unit System Inch
P.D. (mm) 76.00
O.D. (mm) 74.80
MOQ 1
Weight (lb) 2.70
Part Number Cross Reference PB8MX-30S-21, PB8MCS-30-21, 30-8MX21-6FS6
