30-8MXF21X1, Timing Pulley

30-8MXF21X1 - Steel Powerhouse® MX Pulleys

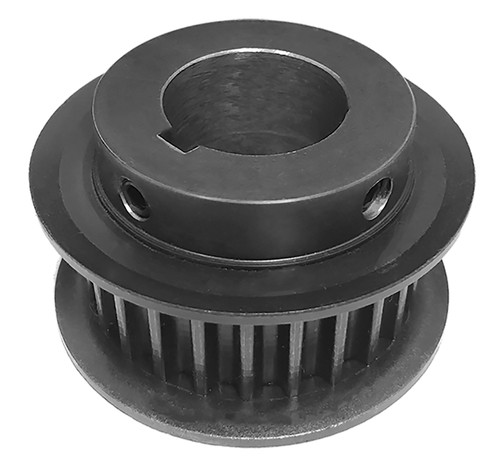

30-8MXF21X1

Click to Enlarge

30-8MXF21X1, Timing Pulley, Steel, Black Oxide,

Learn more about 30-8MXF21X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-8MXF21X1
Teeth 30
Tooth Style 8MX
For Belt Width (mm) 21
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.945
Flange Diameter (in) 3.350
Face Width (in) 1.203
Overall Length (in) 1.766
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 76.00
O.D. (mm) 74.80
MOQ 1
Weight (lb) 1.80
Part Number Cross Reference 30-8MXF21X1
Set Screw Quantity 2
