30LH100, Timing Pulley

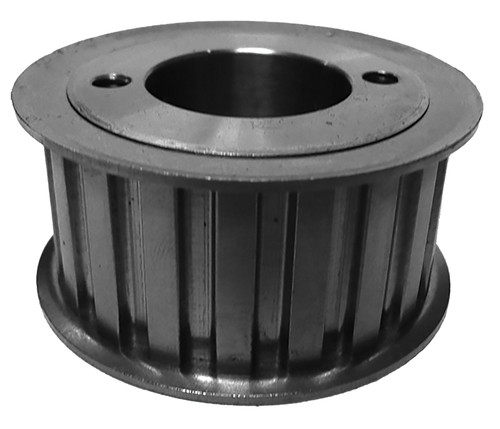

30LH100 - Cast Iron Imperial Pitch Pulleys

30LH100

30LH100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

30LH100, Timing Pulley, Cast Iron

Learn more about 30LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30LH100
Teeth 30
Tooth Style L
For Belt Width (in) 1.0000
Type 16
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 3.581
Outside Diameter (in) 3.551
Flange Diameter (in) 3.813
Face Width (in) 1.250
Overall Length (in) 1.438
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 91.00
O.D. (mm) 90.20
MOQ 1
Weight (lb) 2.10
Part Number Cross Reference 30LH100, 30LH100, 30LH100
