Product Details for 30MP012-6FA3

Comparable to: 30MP012-6FA3, A 6N16-030DF1208, A6N16-030DF1208, PB30MXL012, 78260285, 30MP-012 1/4 6F, PT030A08L02T, TP7A4W2-30, 1375K

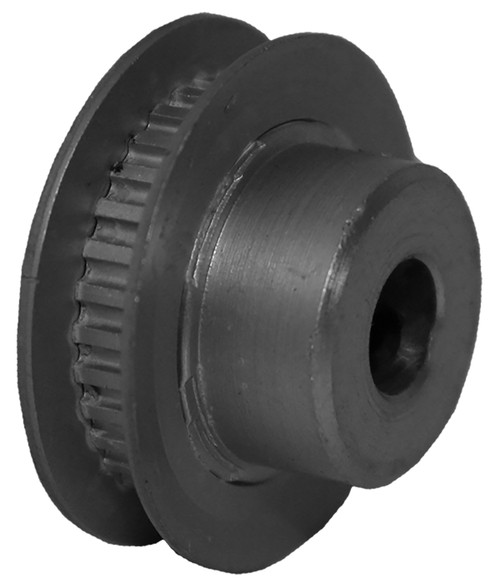

30MP012-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Our 30MP012-6FA3 Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 30MP012-6FA3
Teeth 30
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 0.945
Face Width (in) 0.260
Overall Length (in) 0.516
Hub Diameter (in) 0.546
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.296
Weight (lb) 0.02
Part Number Cross Reference 30MP012-6FA3, A 6N16-030DF1208, A6N16-030DF1208, PB30MXL012, 78260285, 30MP-012 1/4 6F, PT030A08L02T, TP7A4W2-30, 1375K
