30XL037-6A5, Timing Pulley

30XL037-6A5

30XL037-6A5

30XL037-6A5 Line Drawing

Click to Enlarge

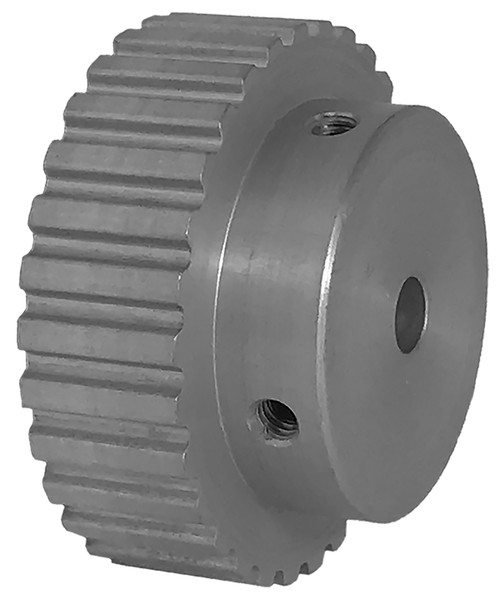

30XL037-6A5, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 30XL037-6A5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 30XL037-6A5
Teeth 30
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 1.910
Outside Diameter (in) 1.890
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.375
Min. Bore (in) 0.375
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 48.00
MOQ 1
Weight (lb) 0.20
Part Number Cross Reference 30XL037-6A5, 30XL037-6A5
Set Screw Quantity 2
