30XXHR500, Timing Pulley

30XXHR500 - Cast Iron Imperial Pitch Pulleys

Product Details for 30XXHR500

Comparable to: 30XXHR500

Click to Enlarge

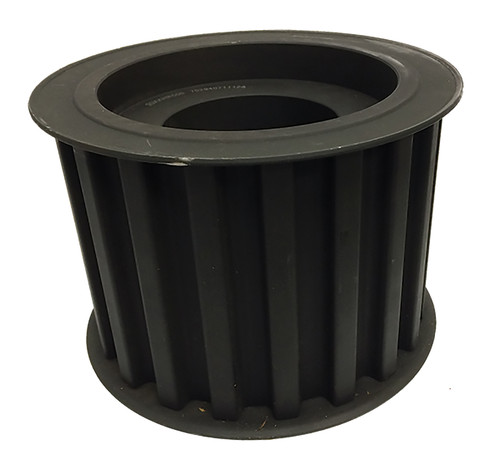

30XXHR500, Timing Pulley, Cast Iron

Learn more about 30XXHR500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30XXHR500
Teeth 30
Tooth Style XXH
For Belt Width (in) 5.000

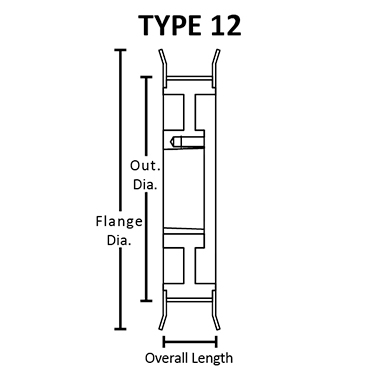

Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) R2
Pitch Diameter (in) 11.937
Outside Diameter (in) 11.817
Flange Diameter (in) 12.688
Face Width (in) 5.813
Overall Length (in) 6.094
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
Max. Bore (in) 3.625
Weight (lb) 69.00
Part Number Cross Reference 30XXHR500
