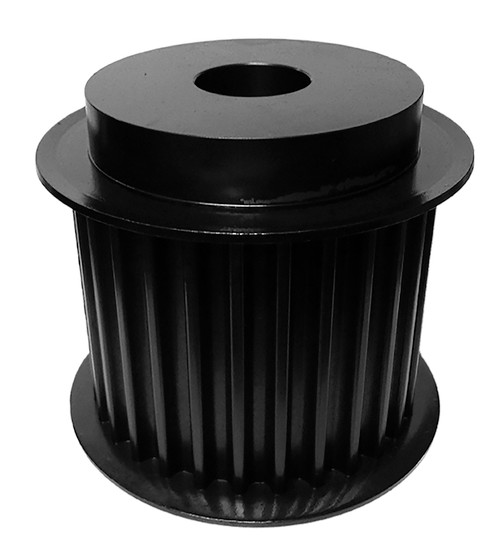

32-14M85-6FS13, Timing Pulley

32-14M85-6FS13 - Steel Powerhouse®HTD® Pulleys

32-14M85-6FS13

32-14M85-6FS13 - Steel Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

32-14M85-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 32-14M85-6FS13 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-14M85-6FS13
Teeth 32
Tooth Style HTD14mm
For Belt Width (mm) 85.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.250
Bore Description 1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.504
Flange Diameter (in) 6.130
Face Width (in) 4.000
Overall Length (in) 4.000
Hub Diameter (in) 4.570
Min. Bore (in) 1.25
Unit System Inch
P.D. (mm) 143.00
O.D. (mm) 139.80
MOQ 1
Weight (lb) 19.40
Part Number Cross Reference 32-14M85-6FS13, 32-14M85-6FS13
