32-3M09-6FA3, Timing Pulley

32-3M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 32-3M09-6FA3

Comparable to: A 6A23-032DF0908, A6A23-032DF0908, P32-3M-09AL, 78820029, PT032F08L09T

Click to Enlarge

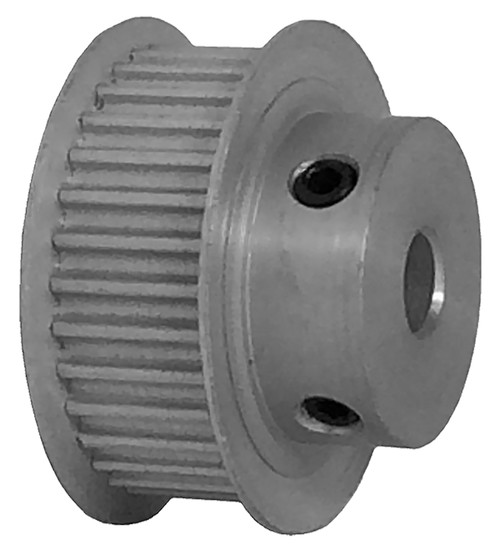

32-3M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-3M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-3M09-6FA3
Teeth 32
Tooth Style HTD 3mm
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.173
Flange Diameter (in) 1.323
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.851
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.400
Unit System Inch
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A23-032DF0908, A6A23-032DF0908, P32-3M-09AL, 78820029, PT032F08L09T
Set Screw Quantity 2
