32-8MX12-1210SS, Timing Pulley

32-8MX12-1210SS

Click to Enlarge

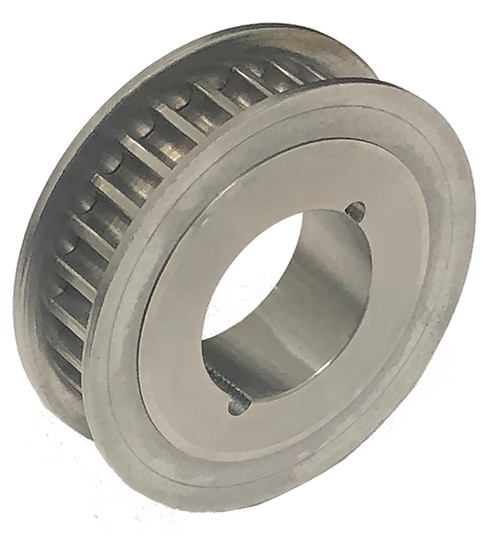

32-8MX12-1210SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 32-8MX12-1210ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	32-8MX12-1210SS
Teeth	32
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 1210 Bushing
Pitch Diameter (in)	3.208
Outside Diameter (in)	3.145
Flange Diameter (in)	3.543
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.760
Unit System	Inch
Bushing	1210
P.D. (mm)	82.00
O.D. (mm)	79.90
MOQ	1
Weight (lb)	1.33
Part Number Cross Reference	SS 8MX-32S-12 1210, SS 32G-8M-12-1210 STAINLESS STEEL QTE, 21071666, 32-8MX12-1210SS, 32-8MX12-1210SS
