32-8MX21-6FS6SS, Timing Pulley

32-8MX21-6FS6SS

Click to Enlarge

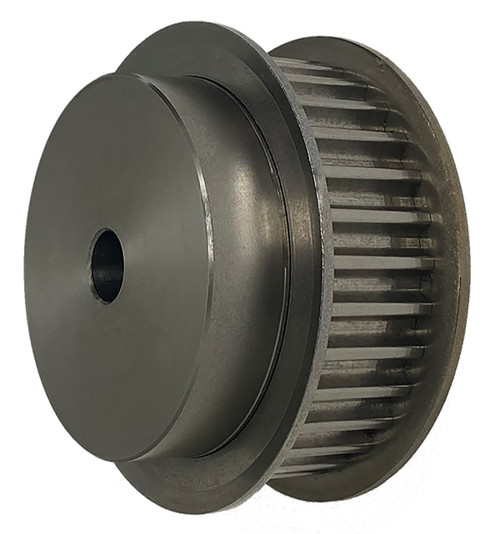

32-8MX21-6FS6SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 32-8MX21-6FS6ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	32-8MX21-6FS6SS
Teeth	32
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	6F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	3.208
Outside Diameter (in)	3.145
Flange Diameter (in)	2.953
Face Width (in)	1.203
Overall Length (in)	1.766
Min. Bore (in)	0.5
Unit System	Inch
P.D. (mm)	82.00
O.D. (mm)	79.90
MOQ	1
Weight (lb)	3.19
Part Number Cross Reference	SS 8MX-32S-21 MPB, SS 32G-8M-21-MPB STAINLESS STEEL QTE, 21060102, 32-8MX21-6FS6SS, 32-8MX21-6FS6SS
